- 9.12Btu/Hr(2.67W/W) EER
- 3.11 W/W COP
- Modern Aesthetic Design
- Efficient Operation with Minimum Electrical Consumption
- Quiet with Minimum Sound Level
- Complete Control Functions for Comfort
- Complete Safety & Reliability Functions
- Durability
- Easy Installation, Service & Maintenance
- R-410A Refrigerant Type

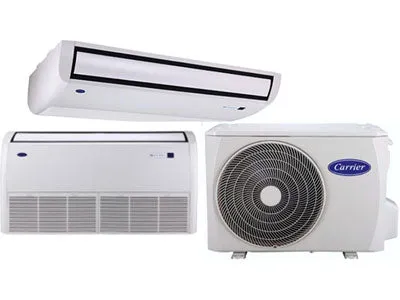

- 220V 50HZ 1Ph, Floor and Ceiling Split Air Conditioner
- 24,000 BTU/Hr (7.03 kW ) Cooling Capacity
- 26,000 BTU/Hr (7.6 kW ) Heating Capacity
- Healthy & Clean Indoor Air Quality (IAQ)
Technical Specifications | |
Voltage and Frequency | 220V 50HZ 1Ph |
Cooling Capacity | 24,000 BTU/Hr Cooling Capacity |
7.03kW | |
Input power – Cooling | 2630 W |
E.E.R Cooling | 2.67 W/W |
9.12 Btu/Hr | |
Heating Capacity | 26,000 BTU/Hr Heating Capacity |
7.6 kW | |
Input power – Heating | 2450 W |
C.O.P – Heating | 3.11 W/W |
Indoor Unit | |
Nominal air Flow (high/Med/Low) | 1250/1050/900 m3/hr |
738/620/531 cfm | |
Sound Pressure (high/Med/Low) | 54/49/44 |
Outdoor Unit | |
Compressor type | Rotary |
Refrigerant type / Coupler type | R410A / Flare |
Sound pressure | 61d(B)A |
Weight And Dimensions | |
Product Indoor Unit Dimensions | 26.57"H x 42.04"W x 9.25"D |
Product Outdoor Unit Dimensions | 27.63"H x 33.26"W x 14.29"D |
Product Indoor Unit Wight | 54.23lbs. |
Product Outdoor Unit Wight | 116.18lbs. |
NOTE: This product will NOT work in US or Canada, It can be used ONLY in overseas countries with 220~240 volts electric outlets.
Shipping is not free for this Product
